GraphQL Structure

Queries vs Mutations

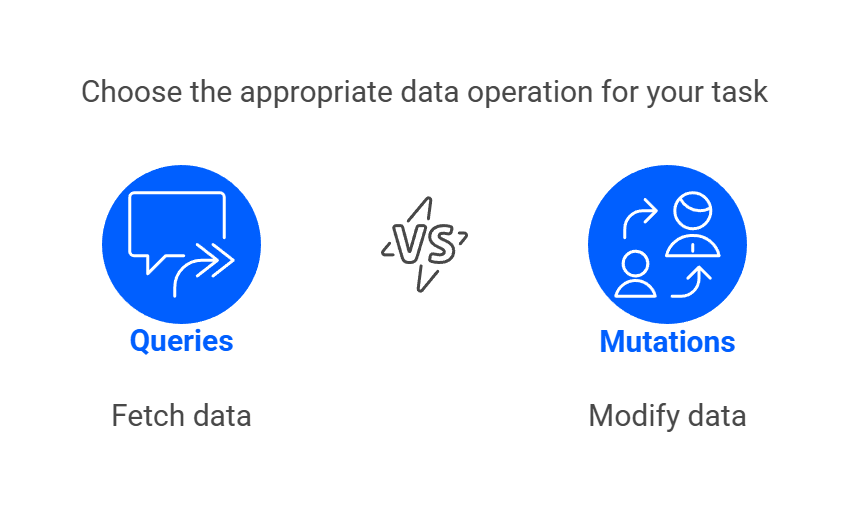

In GraphQL, queries and mutations are the two main ways to interact with data:

Note: This is just a brief introduction to Queries and Mutations to help you get started. There’s no need to fully understand everything right now—we’ll dive deeper into the details later in this guide.

Queries

Used to get data from a server. Think of it like asking a question—"What are the names and IDs of the members in this specific pipe?" The server responds with the exact information requested.

Examples

{
  pipe(id: 123) {
    name
    users {
      id
      name
    }
  }
}

In this query, we’re asking the server for information about a specific pipe and its members. Let’s break it down:

• pipe(id: 123): This asks the server to locate a specific pipe using the id argument. The id assigned in this case is 123.
• Fields: We specify two fields we want the server to return about the pipe:
  • name: The name of the pipe.
  • users: We request details about the pipe’s users, and for each user, we want their id and name.

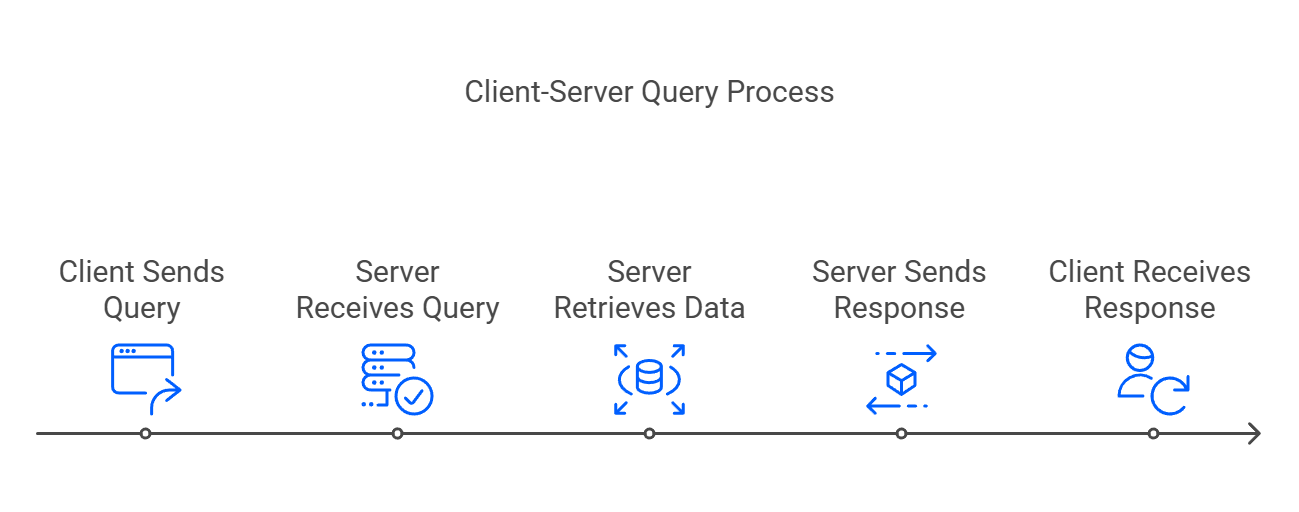

When this query is executed, the server will return a structured response containing exactly this information.

For example

{
  "data": {
    "pipe": {
      "name": "Hiring Process",
      "users": [
        {
          "id": "987654321",
          "name": "Alex Johnson"
        },
        {
          "id": "987654322",
          "name": "Alice Rivera"
        }
      ]
    }
  }
}

Mutations

Used to change data on the server, like creating, updating, or deleting something. It’s like placing an order at a restaurant—"I’d like to create a new card." The server processes the request and updates the data accordingly.

Example

mutation {
  createCard(input: { pipe_id: 2, title: "Hello World" }) {
    card {
      id
    }
  }
}

In this mutation, we ask the server to create a new card in a specific pipe. Let’s break it down:

• Operation type: mutation: This specifies that we are requesting a data modification, which in this case is creating a new card.
• createCard: This is the mutation we want to execute. It represents a function to create a new card on the server.
• input:
  • pipe_id: 2: This tells the server that the new card should be created in the pipe with the unique ID of 2.
  • title: "Hello World": This sets the title of the new card to "Hello World".
• Fields: Inside the createCard mutation, we specify that we’d like the following field returned:
  • card { id }: Once the mutation completes, we request the id of the newly created card to confirm it was successfully created and to reference it if needed in subsequent operations.

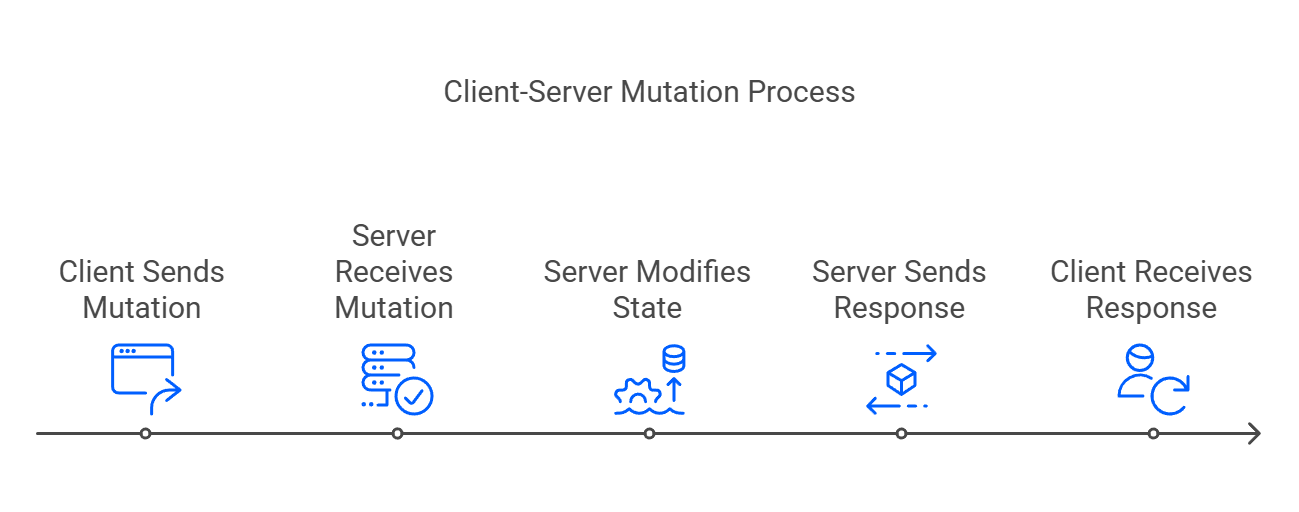

When this mutation is executed, the server processes the request and returns a structured response with the created data.

Example Server Response

{
  "data": {
    "createCard": {
      "card": {
        "id": "1"
      }
    }
  }
}
